Concurrent Technologies TR E5x/msd – VPX Processor

cct_tr-e5x-msda
cct_tr-e5x-msdacct_tr-e5x-msdbcct_tr-e5x-msdccct_tr-e5x-msddcct_tr-e5x-msde

Features

  • TR E8x/msd recommended for new designs
  • 3U VPX Processor board
  • Based on 4-core Intel® Xeon® E3-1500 v5 processor
  • Up to 72 GPU execution engines for co-processing

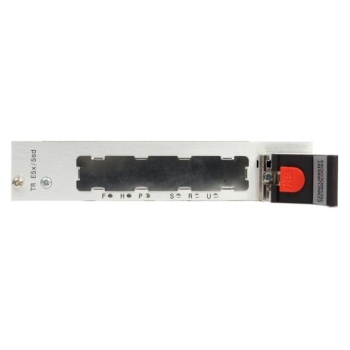

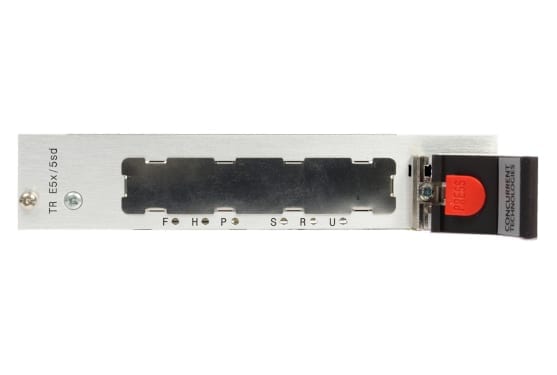

  • Optional XMC or front panel module

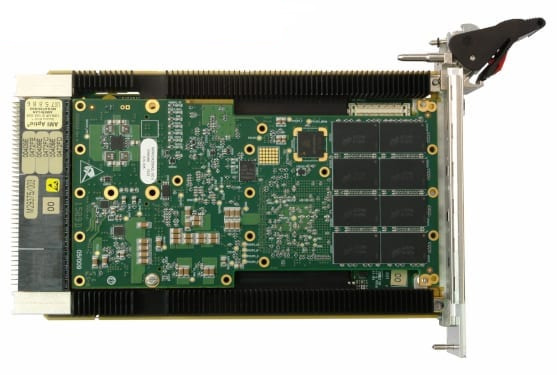

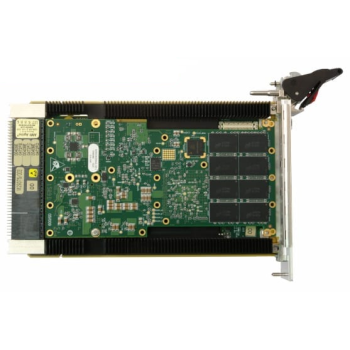

  • Optional solid-state disk module up to 128GB

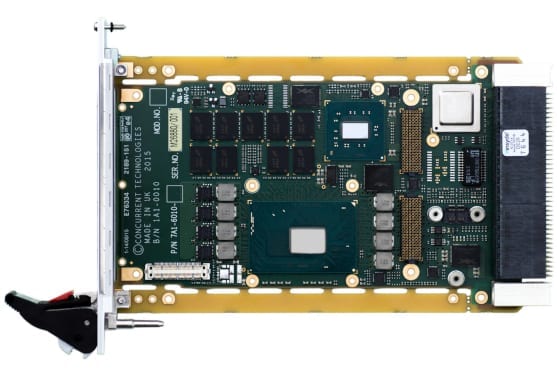

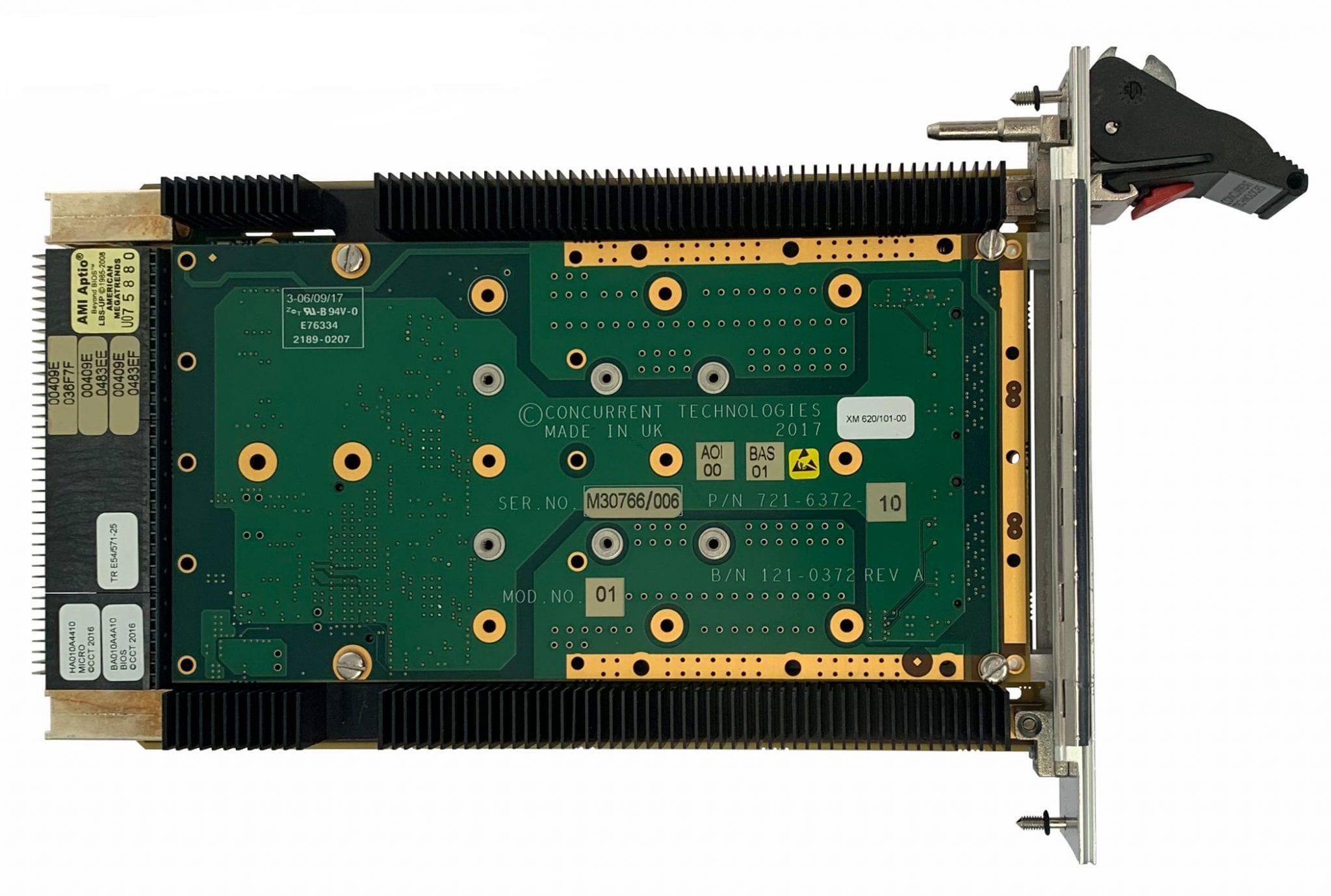

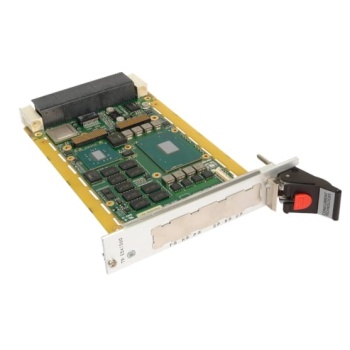

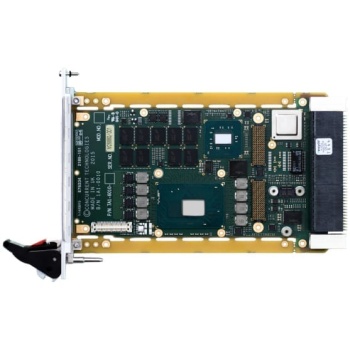

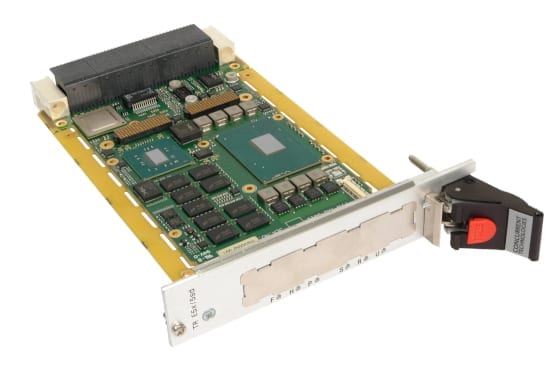

TR E5x/msd is a 3U VPX™ board based on the Intel® Xeon® processor E3-1500 v5 family, providing enhanced processing performance within the same Size, Weight, and Power (SWaP) envelope compared to the successful TR B1x/msd board. A range of standard I/O interfaces is provided with an XMC expansion slot to add application-specific I/O or an optional front panel module with DisplayPort, Ethernet, USB, and serial connections. TR E5x/msd supports a wide range of backplane profiles based on a PCI Express® (PCIe®) data plane fabric and optional PCIe expansion plane for flexible multi-board configurations. It is compliant with the recently ratified VITA 46.11 system management specification and is particularly suited for command, control, communicate and compute applications.

Datasheet TR E5x/msd

Accessories

AD TR1/x10 – Rear Transition Module
