Features
- Intel® 12th/13th/14th Core™ i9/i7/i5/i3, and Pentium®/Celeron® processors
- Intel®Q670E or R680E chipset
- DDR5 UDIMM memory up to 192 GB
- USB 2.0
- USB 3.2 Gen 1 and Gen2 ports
- Gigabit Ethernet
- COM ports (RS232/422/485)
- I2C port
- TPM port
- SATA-III with RAID support
- M.2 NVME support VGA/DP1.2/HDMI2.0
- PCI and PCIe x4 and x16 expansion
- AMT remote management functionality
- -10 ~ + 60 °C operating temperature
- Windows 10/11 and Linux support

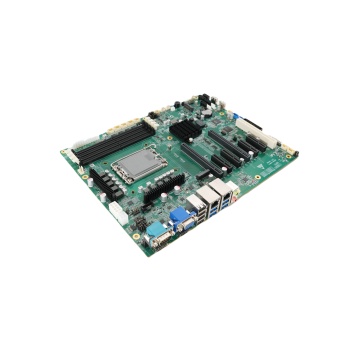

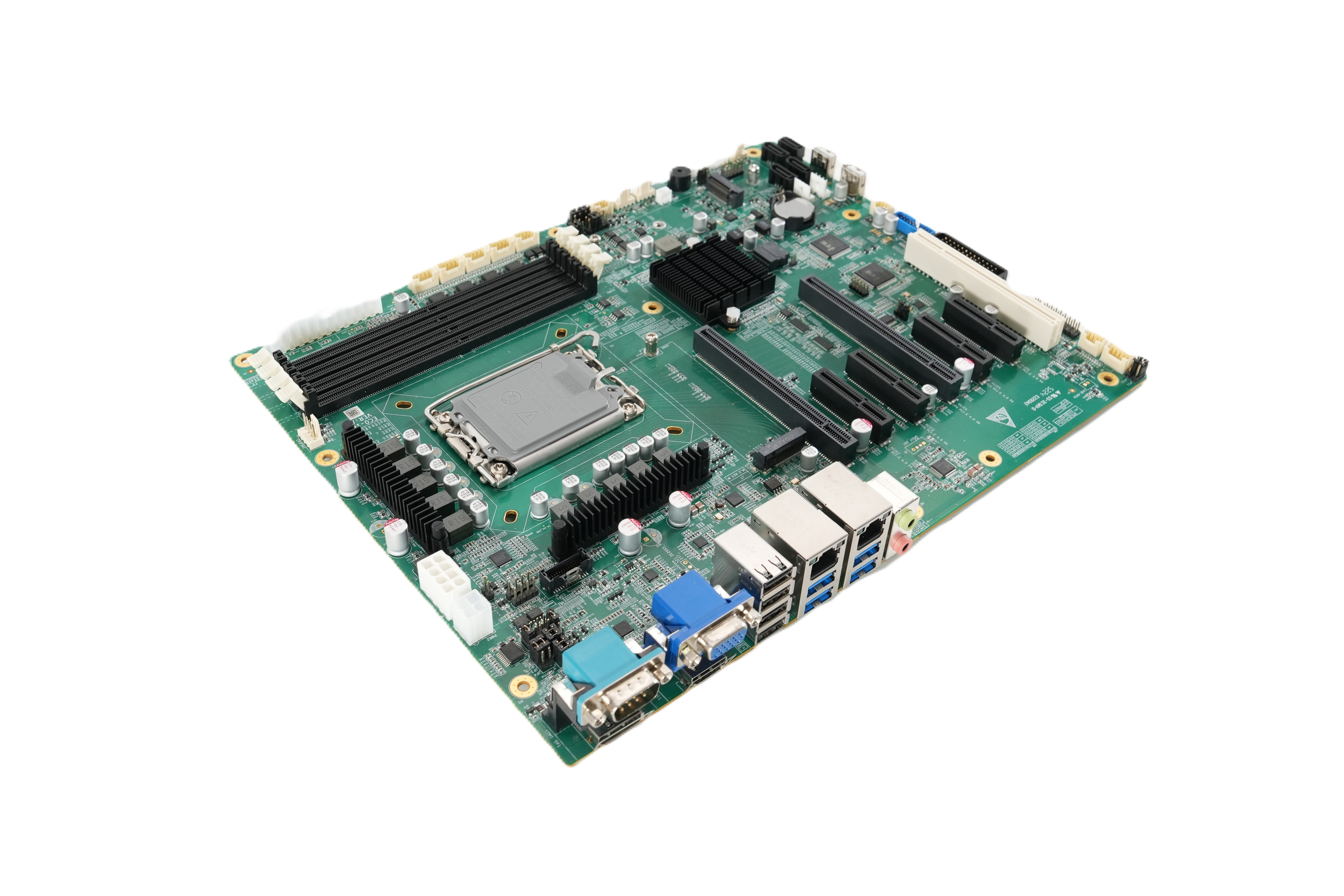

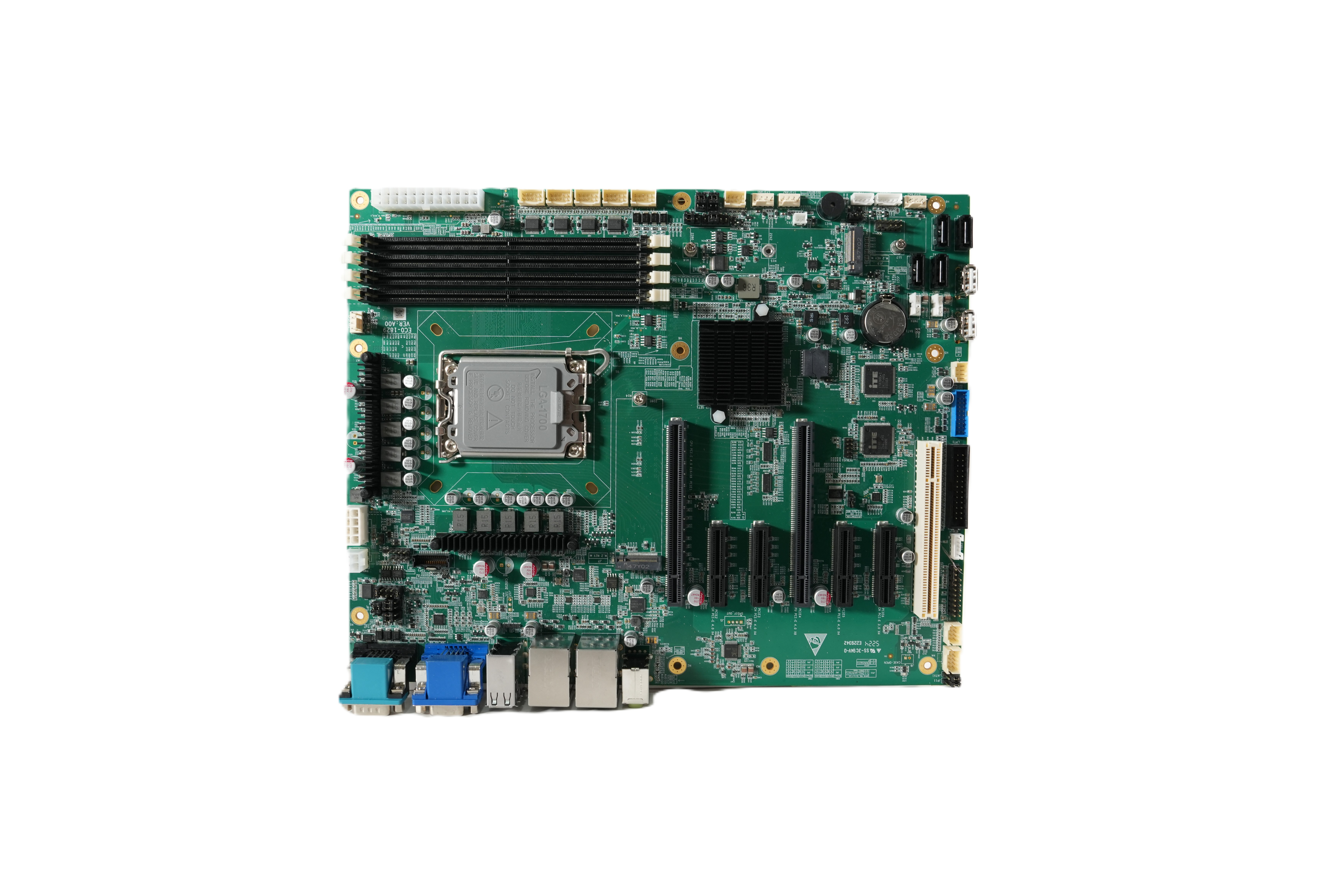

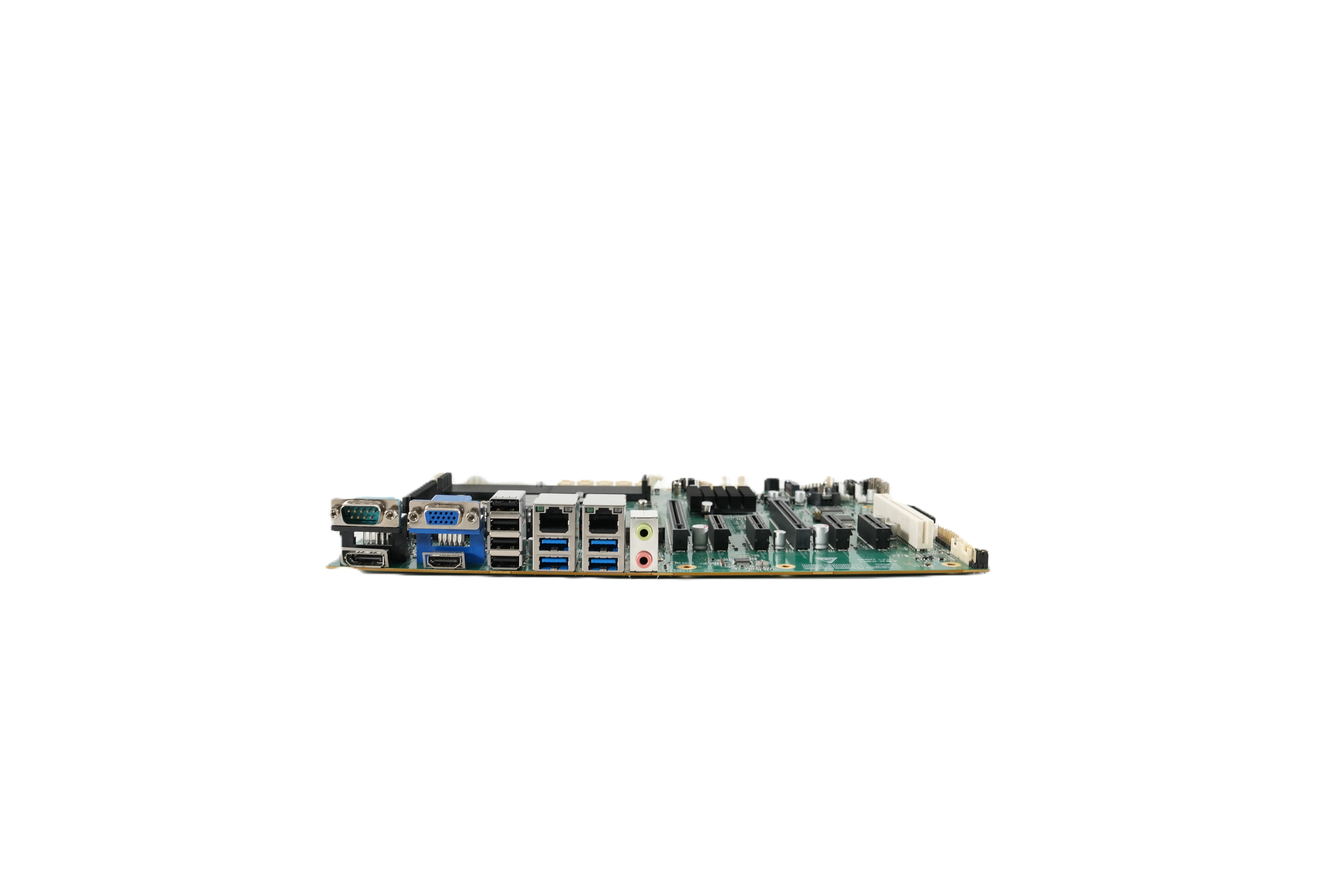

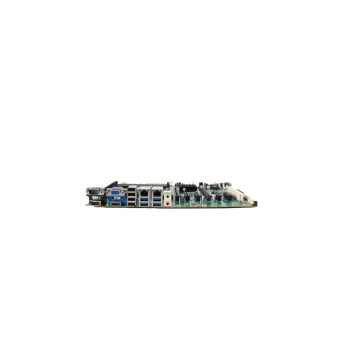

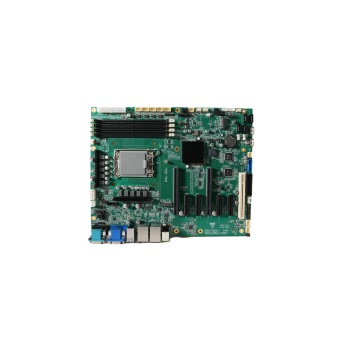

EC0-1829 motherboard follows the standard ATX specification and utilizes the Intel® Q670E/R680E chipset. It supports LGA 1700 Intel® 12th/13th/14th Core™ i9/i7/i5/i3, and Pentium®/Celeron® series processors, with a maximum TDP of 125W and vPro functionality. It provides 4 x DDR5 UDIMM memory slots, expandable up to 192 GB. The motherboard supports high-speed USB 3.2 Gen2 ports with a bandwidth rate of 10Gb/s. It also supports a combination of PCI and PCIe expansions, multiple serial ports, and multiple USB ports, along with AMT remote management functionality. This product will be widely used in industrial automation, machine vision, deep learning, security monitoring, intelligent transportation, environmental protection, communication, and other fields.
Datasheet EC0-1829
