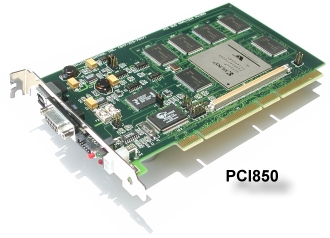

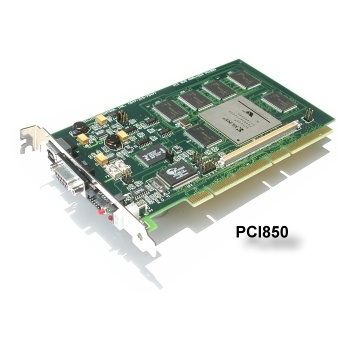

Silicon Control PCI850 PCI-X Analyzer

Silicon Control PCI850 PCI-X Analyzer

The result is a powerful diagnostic tool for bus analysis all on a single plug-in card.

Capture and generate bus activity at 33, 66 and 133 Mhz, automatically detect protocol and timing violations, test for PCI compliance, simulate hardware, analyze performance and much more.

The PCI850 analyzer provides a multitude of functions to help you analyze your system.

  • Capturing bus activity using sequential triggers and filters
  • Exerciser to perform memory, IO and configuration cycles
  • Stimulus generation for hardware simulation
  • Target memory with addressable windows
  • Anomaly detection of protocol and timing violations
  • Performance analysis of utilization, transfer rates, latency, statistics
  • Compliance testing

If you need to debug, integrate or test a PCI system or component, the PCI850 family of advanced bus analyzers quickly and accurately pinpoints problems, identifies performance issues and tests for compliance.


850 System Analyzer/Exerciser

Feel free to request a quote
