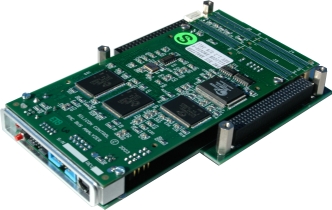

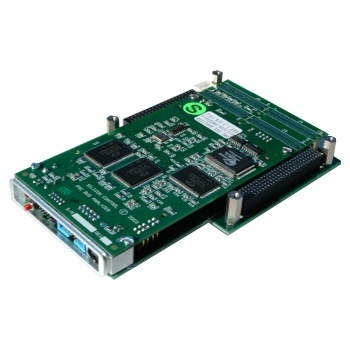

Silicon Control PCF850 Advanced PC/104+ Bus Analyzer / Exerciser

Silicon Control PCF850 Advanced PC/104+ Bus Analyzer / Exerciser
Contact us for more information

Silicon Control introduces the ultimate analyzer and exerciser for PC/104 and PC/104+ systems. This 3rd generation PC/104 analyzer combines high performance hardware with a sophisticated and intuitive software interface. The result is a powerful diagnostic tool for bus analysis all on a single plug-in card.

The PCF850 analyzer provides a multitude of functions to help you analyze your system.

  • Capturing bus activity using sequential triggers and filters
  • Exerciser to perform memory, IO and configuration cycles
  • Stimulus generation for hardware simulation
  • Target memory with addressable windows
  • Anomaly detection of protocol and timing violations
  • Performance analysis of utilization, transfer rates, latency, statistics
  • Compliance testing

If you need to debug, integrate or test a PC/104 system or component, the PCF850 family of advanced bus analyzers quickly and accurately pinpoints problems, identifies performance issues and tests for compliance.


850 System Analyzer/Exerciser
