Features
- Form Factor: 2.5-inch (100.0mm x 70.0mm x 9.5mm) L×W×H
- Interface: 44 PIN PATA IDE
- Support ATA/ATAPI PIO Mode 0, 1, 2, 3, 4
- Support ATA/ATAPI Multi-Word DMA Mode 0, 1, 2
- Support ATA/ATAPI Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6, 7
- Performance: Max Sequential Read/Write: 100/70MB/s (@128GB)
- Density: 64GB~1TB
- NAND Configuration: pSLC (30,000~50,000 P/E Cycles)
- Industrial operating temperature range from -40°C to +85°C
- Input voltage: 5.0V (±5%)
- Flash management algorithm: static and dynamic wear-leveling, bad block management algorithm.
- Supports dynamic power management and SMART (Self-Monitoring, Analysis and Reporting Technology).
- Internal detectors for power fail protection and overvoltage, and overcurrent protection hardware design.
- Data retention: JESD47 compliant
- MTBF: 3,000,000 Hours

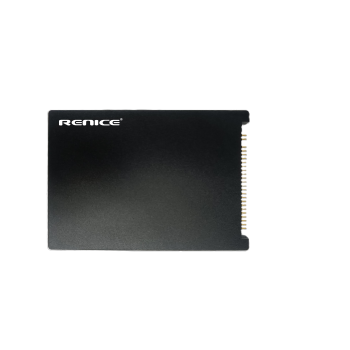

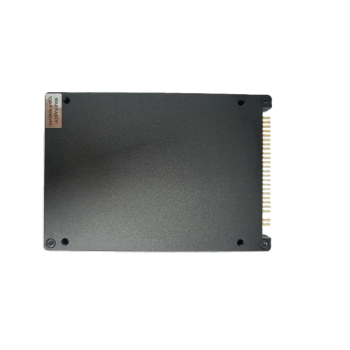

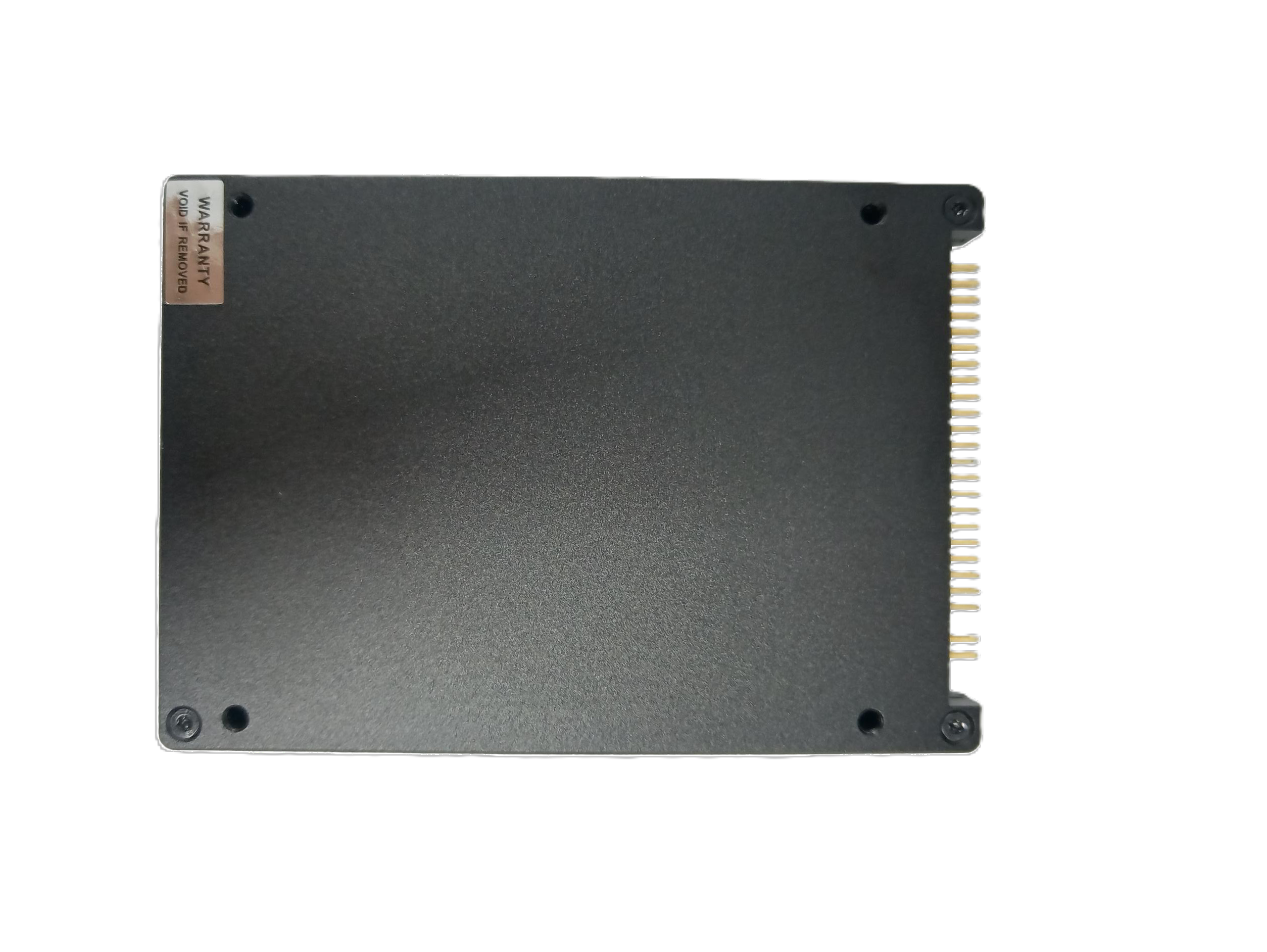

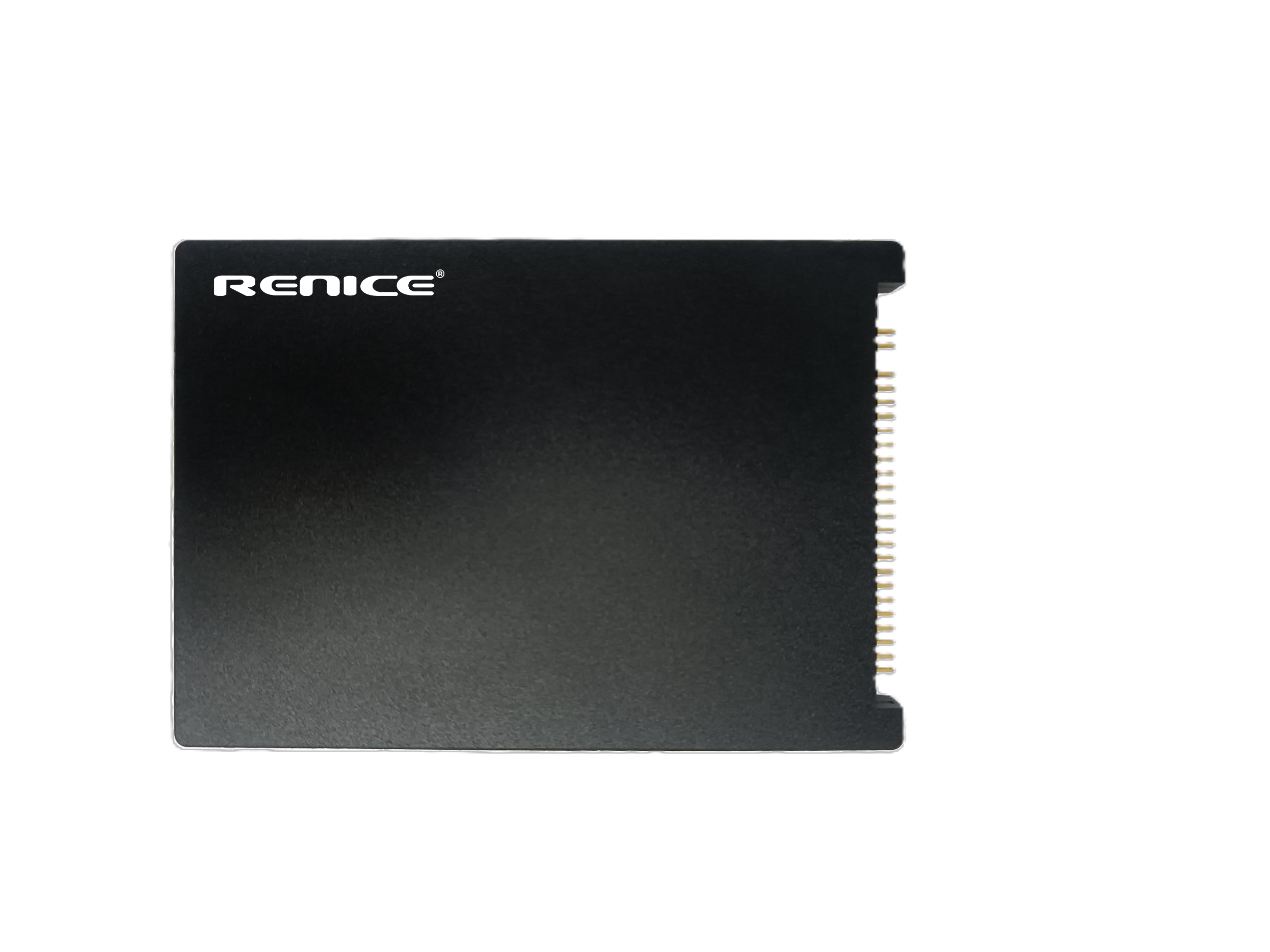

The Renice X17 Series 2.5-inch PATA SSD is designed with a standard 44-pin IDE interface, high-capacity support up to 1TB, well-suited for industrial environments’ operation from -40° C to +85° C. Featuring consistent transfer rates, maintaining over 85% of its performance throughout its entire lifespan, regardless of platform or operating conditions, with no significant performance drops.
Datasheet X17 2.5'' PATA IDE SSD
