New Pico-ITX SBC with Z5xx CPU from EVOC

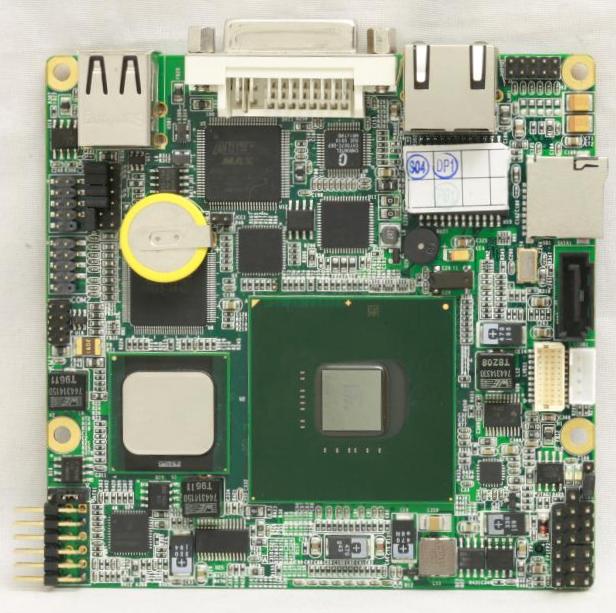

EVOC Intelligent Technology released the EC2-1711 Single Board Computer in a Pico-ITX form factor. The board is a small and fanless design equiped with the Intel® Atom™ (Intel® Silverthorne-XL) Z510P at 1.1 Ghz or the Z530P at 1.6 Ghz processor, and comes with a maximum of 2 GByte onboard DDR2 memory. The board provides IO for Ethernet, Dual-display for DVI and LVDS, SATA and Serial. Storage can be realized with the MicroSD card slot.
Specifications are as follows
| System | |
| Processor | Onboard Intel® Silverthorne-XL 1.1G 400MHz/1.6G 533MHz CPU |
| Chipset | Intel® Poulsbo-XL |
| Memory | Support 1 x DDR2 SO-DIMM slot, up to 2GB |
| Hardware Monitor | Monitors CPU temperature, voltage and watchdog timer, etc. |
| Watchdog Timer | 1~255 sec./min. timer system reset or interrupt, setup by software |
| Expansion Interface | N/A |
| Storage | |
| Serial ATA | 1 x SATA |
| Flash storage | 1 x Micro-SD |
| I/O interface | |
| USB | 2 x USB2.0 |
| Serial Port | 2 x COM, COM1 supports RS-232/422/485 mode and wake-up function |
| Audio | AC’97, available interface of speak out, Line-in and Mic-in |
| Display | |
| Chipset | Intel® Graphics media accelerator 500 integrates in chipset |
| Resolution |
DVI-D mode: up to 1208 x 1024@85Hz LVDS mode up to 1366 x 768@85Hz |
| Dual Display | DVI+LVDS |
| Ethernet | |
| Chipset | Intel® Graphics media accelerator 500 integrates in chipset |
| Speed | 10/100/1000Mbps |
| Connector | 1 x RJ45 |
| Mechanical and Environmental | |
| Dimensions | 100mm x 97mm |
| Operating Temperature | -20℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Operating Humidity | 5%-95%,non-condensing |
| Power | |
| Power Supply | ATX/AT power, Support single +5V power supply |
| Operating System | |
| Windows OS | Windows XP |
| Embedded OS | Linux/XP Embedded |
